Descending Life Line/Support
- Descending Life Line
- Support

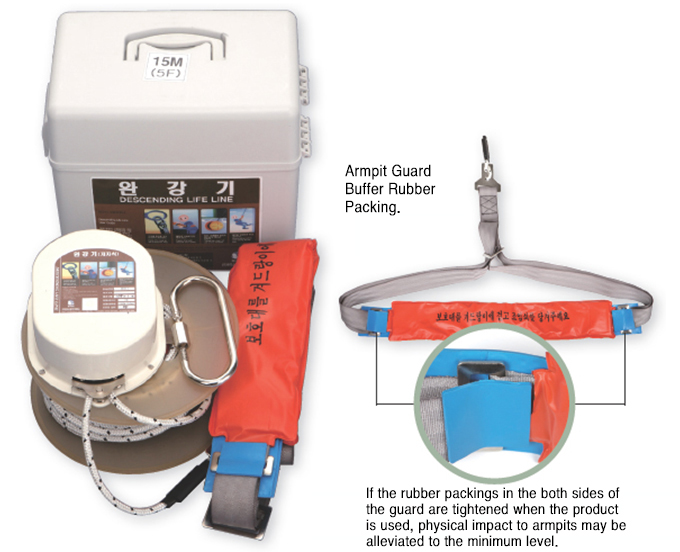

Slow-descending Device
Specifications
| Type No. | Wan 14-2 |
|---|---|
| Tensile Strength of Belt and Rope | 900 ~ 1,000㎏ |
| Maximum Service Load | 150㎏ |
| Maximum Number of Users | 1 Person |
| Descending Speed | 16㎝/s ~ 150㎝/s |
Standard
| Model | Type | Length(m) | Weight(㎏) |
|---|---|---|---|
| HKDD-3 | 3F | 9 | 3.1 |
| HKDD-4 | 4F | 12 | 4.35 |
| HKDD-5 | 5F | 15 | 5.6 |
| HKDD-6 | 6F | 18 | 6.85 |
| HKDD-7 | 7F | 21 | 8.1 |
| HKDD-8 | 8F | 24 | 9.35 |
| HKDD-9 | 9F | 27 | 10.6 |
| HKDD-10 | 10F | 30 | 11.85 |
| HKDD-11 | 11F | 33 | 13.1 |
| HKDD-12 | 12F | 36 | 14.35 |
| HKDD-13 | 13F | 39 | 15.6 |
| HKDD-14 | 14F | 42 | 16.85 |
| HKDD-15 | 15F | 45 | 18.1 |

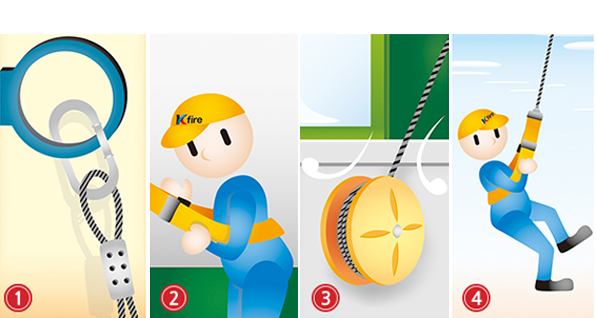

How to use
Hang the hook to the eyebolt safety.
Fasten the belt around the chest.
Throw the reel out of the window.
Descend your body facing the wall.
Special Feature and Advantages
· The rope is made of flexible and untwisted cotton yarn-covered special air cable to reduce friction during use and to maintain durability.
· The old and weak and children may use it to escape to safety.
· The product is easy to use and descends slowly with no acceleration.
· You can descend safely on your own without any help from others even in narrow places.
· The old and weak and children may use it to escape to safety.
· The product is easy to use and descends slowly with no acceleration.
· You can descend safely on your own without any help from others even in narrow places.

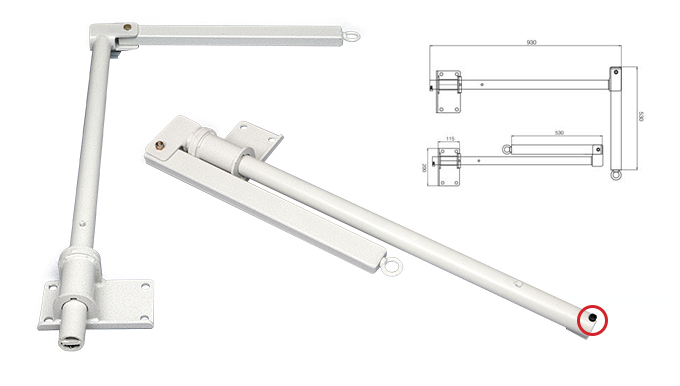

Inside Wall Attachment Type 2-stage Support
| Type | Inside Wall Attachment Type |
|---|---|
| Type Approval No. | Jiji 15-12 |
| Material | KSD 3503(SS400) |
| Weight | 7.2㎏ |
| Maximum Number of Users | 1 person |
| Maximum Service of Weight | 150㎏ |
| Rotaing Angle | 150 degree |

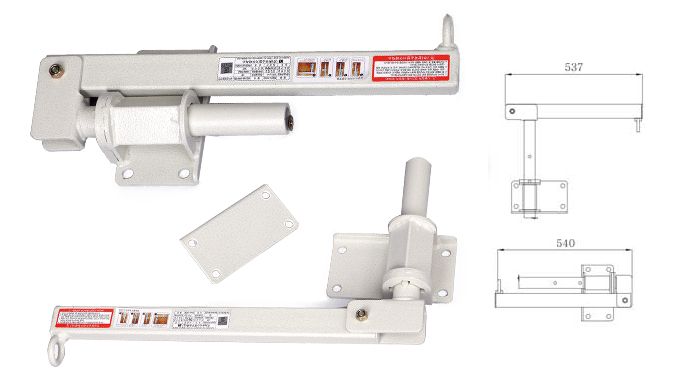

Lower Wall Attachment Type Support
LH Type
| Type | Lower Wall Attachment Type Support |
|---|---|
| Type Approval No. | Jiji 15-16 |
| Material | KSD 3503(SS400) |
| Weight | 10.5㎏ |
| Maximum Number of Users | 1 person |
| Maximum Service of Weight | 150㎏ |
| Rotaing Angle | 360 degree |
General Type
| Type | Lower Wall Attachment Type Support |
|---|---|
| Type Approval No. | Jiji 14-4 |
| Material | KSD 3503(SS400) |
| Weight | 5.87㎏ |
| Maximum Number of Users | 1 Person |
| Maximum Service of Weight | 150㎏ |
| Rotaing Angle | 360degree |

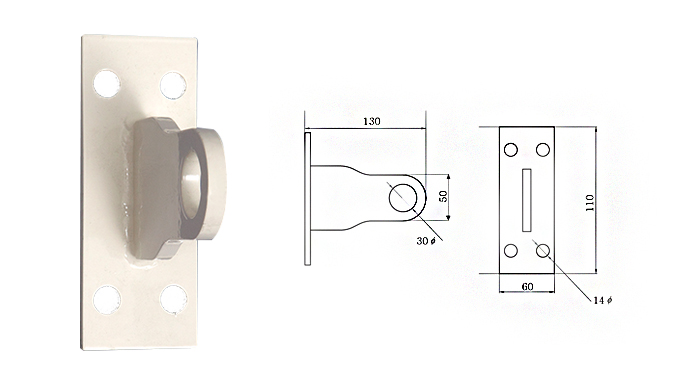

Outside Wall Attachment Type Support
| Type | Outside Wall Attachment Type Support |
|---|---|
| Type Approval No. | Jiji 15-13 |
| Material | KSD3698 (SUS304) |
| Weight | 0.86㎏ |
| Maximum Number of Users | 1 person |
| Maximum Service of Weight | 150㎏ |

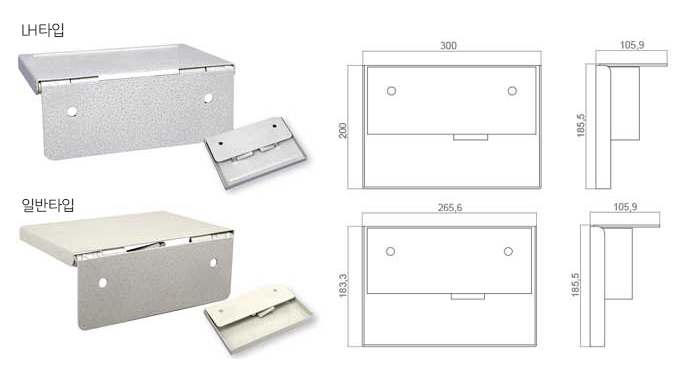

Foothold of Support
| Type | Foothold of Support |
|---|---|
| Material | KSD 3752 |
| Weight | 2.6kg / 1.76Kg |
| Maximum Number of Users | 1 person |
| Maximum Service of Weight | 150㎏ |

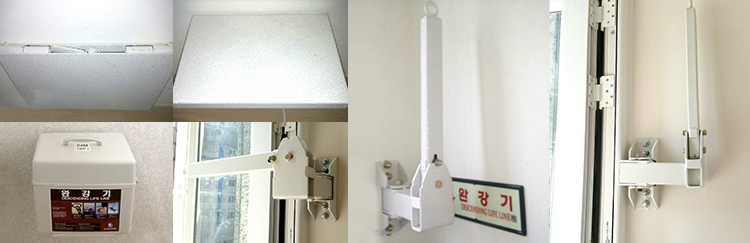

Picture of installer
