Gas Leakage Alarm and Shut-off Device
Gas Leakage Alarm and Shut-off Device HK-S500

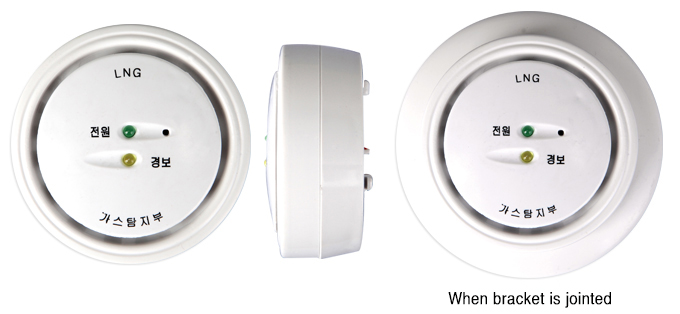

Gas Leakage Alarm Device HKS-410
| Type | Standalone type |
|---|---|
| Model | HKA-410 |
| Power Supply | DC 12V |
| Power Consumption | 1.7W(평상시) / 1.8W(경보시) |
| Alarm Output | WHEN ALARMED-DC 12V /접점신호 : NO, NC, COM |
| Operating Temperature Range | -20 ~ 40℃ |
| Detection Method | Diffusion Method & Catalytic Combustion Method |
| Applicable Gas | LPG, LNG |
| Alarming Density | LPG 0.05 ~ 0.45% / LNG 0.05 ~ 1.25% |
| Outside Dimension | 61Ø × 21(D) without bracket / 80Ø × 32(D) with bracket |

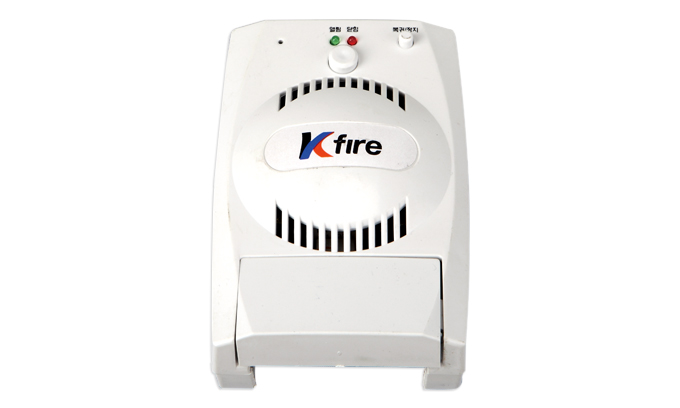

Control Part HKL-500
| Power Supply | 220V |
|---|---|
| Shut-off Part Output | DC 12V |
| Button Function | Opening, Closing, Return / Stop |
| Opening & Closing Method | Limit S/W Method |
| Outside Dimension | 79(W) × 128(H) × 45(D) |
| Alram Input | DC 12V |
| Operating Temperature and Humidity | -10 ~ 40℃ |
| Used Shut-off Device | HKS-220 |
| Weight | 311g |
| Communication Function(Linkage) | PLC / RS-485(option) |

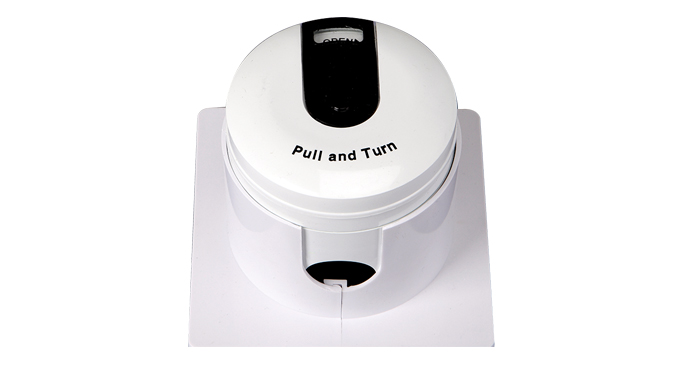

Shut-off HKS-220
| Type | Gear operated type |
|---|---|
| Attachment Type | Ball valve direct tightening |
| Connection Wiring | CVV or VCT or UTP 2P or TIV 0.5 |
| ×3c, Control Wire | |
| (Connection Wiring for LH : Apply HFIX wire) |

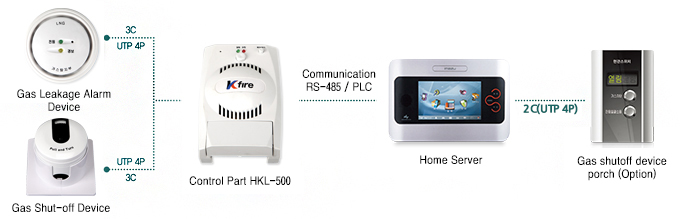

Product Configuration

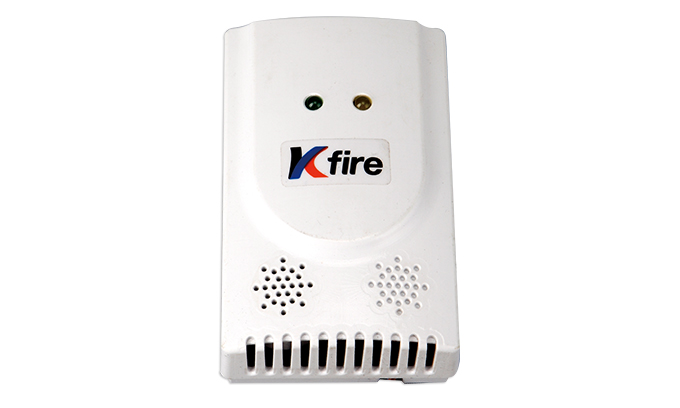

Gas Leakage Alarm Device
| Type | Standalone Type Gas Alarm Device |
|---|---|
| Model | HKA-220 |
| Power Supply | AC 220V |
| Power Consumption | 2.0W |
| Alarm Output | WHEN ALARMED-DC 12V / Contact Point Signal : NO, NC, COM |
| Operating Temperature Range | -20 ~ 40℃ |
| Detection Method | Diffusion Method & Catalytic Combustion Method |
| Applicable Gas | LPG, LNG |
| Alarming Density | LPG 0.05 ~ 0.45% / LNG 0.05 ~ 1.25% |
| Outside Dimension | 67(W) × 105(H) × 31(D) with bracket |
| Weight | 196.7g |
