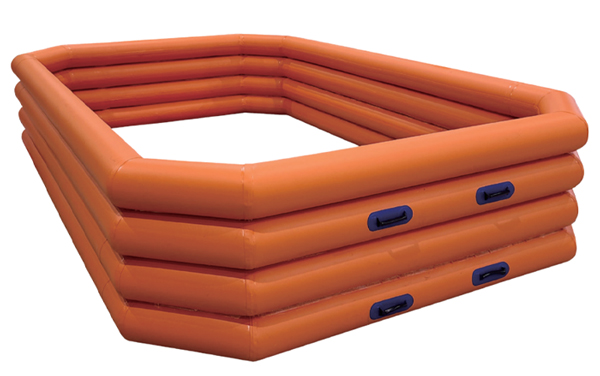

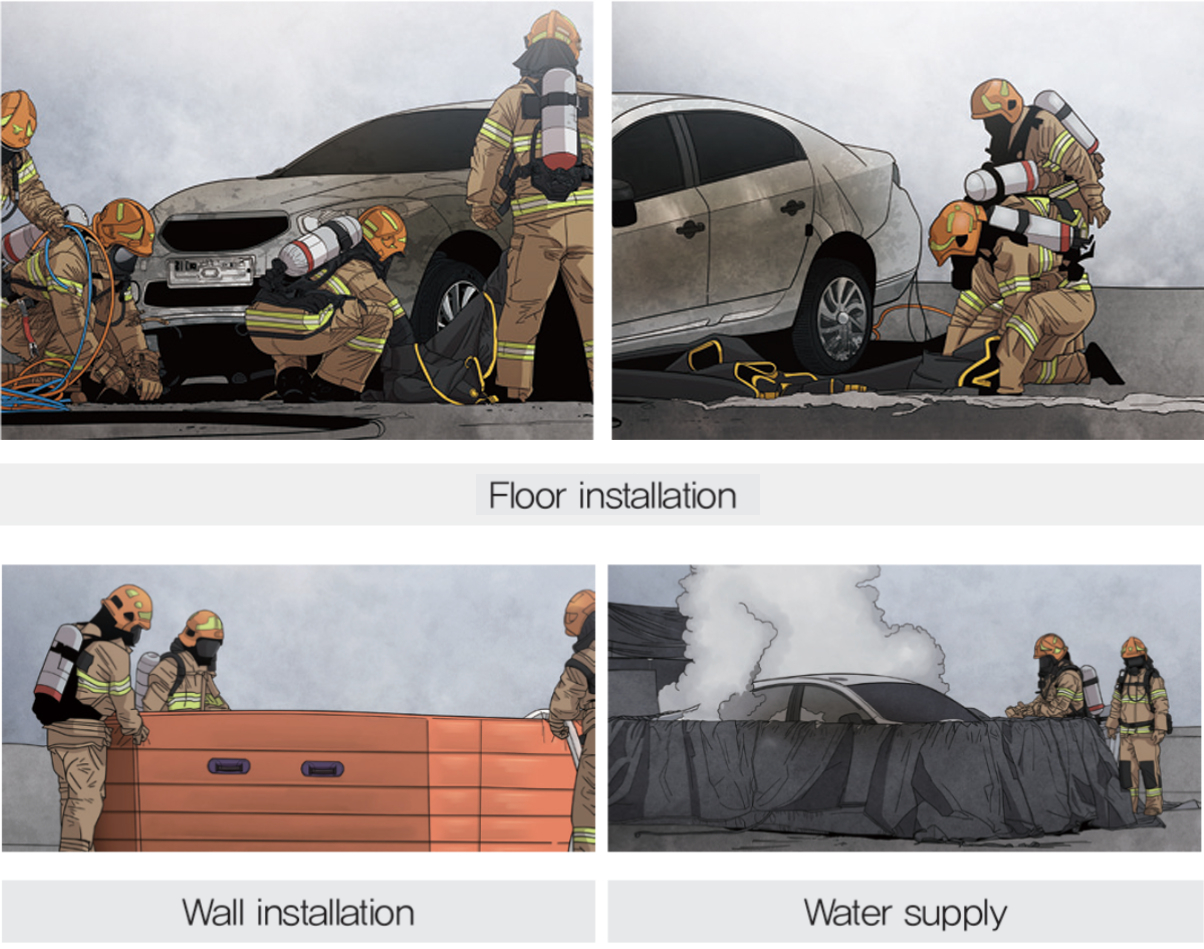

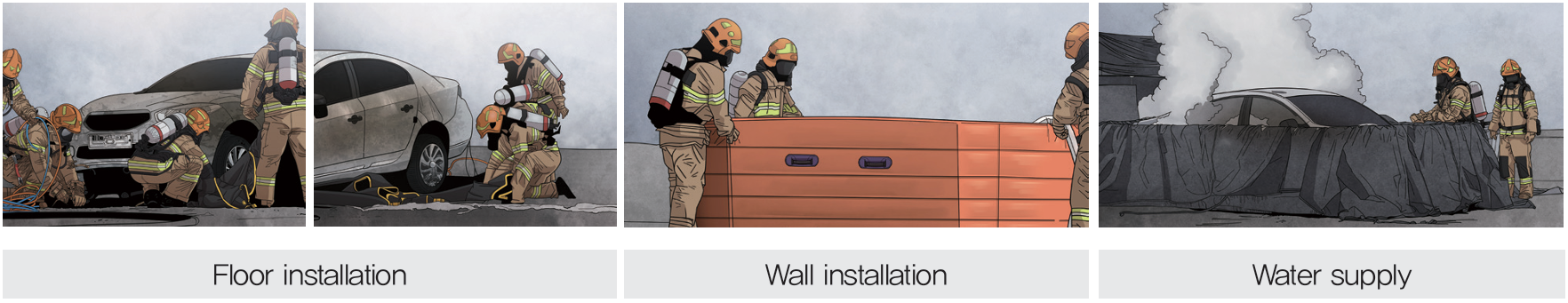

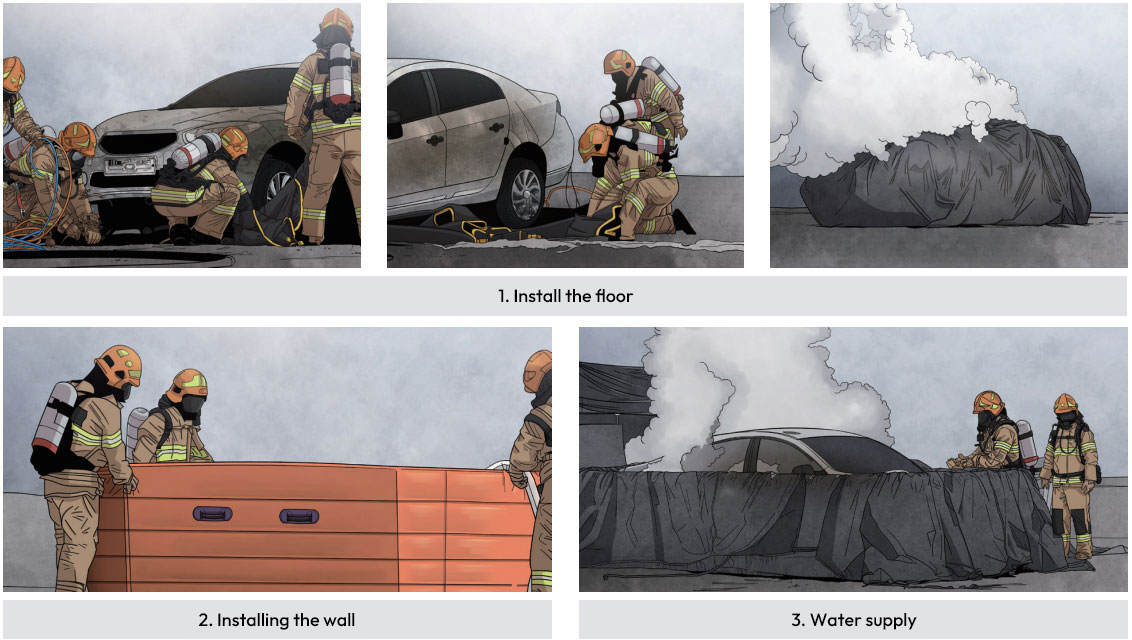

Mobile Fire Water Tank
| Air Volume | 3,000L |
| Air Charging | Within 3 minutes (use air respiratory containers) |

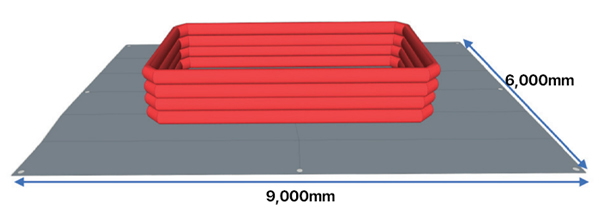

| Installation Size | 5,000mm(L) × 2,500mm(M) × 1,000mm(H) |
| Storage Size | 1,000mm(L) × 1,000mm(M) × 600mm(H) |
| Weight | 65kg |
Size can be changed according to user request
Handle, gas inlet, outlet, etc
Can be changed in quantity and location throughconsultation
Mark guidelines for easy center installation
Installing a ring that can be connected to a rope
Special inorganic particle coating stabilizes the shape even at 1000℃ or higher
Weight around 25 kg
Recommended number of uses 5 times
| KEV-WT-02(Premium) | Application of high-pallon fabric. Small storage volume and weight reduction |
| KEV-WT-01(Standard) | Polyester + PVC coating fabric applied. Relatively heavy |
Fixed Fire Water Tank (KEV-WT-101)

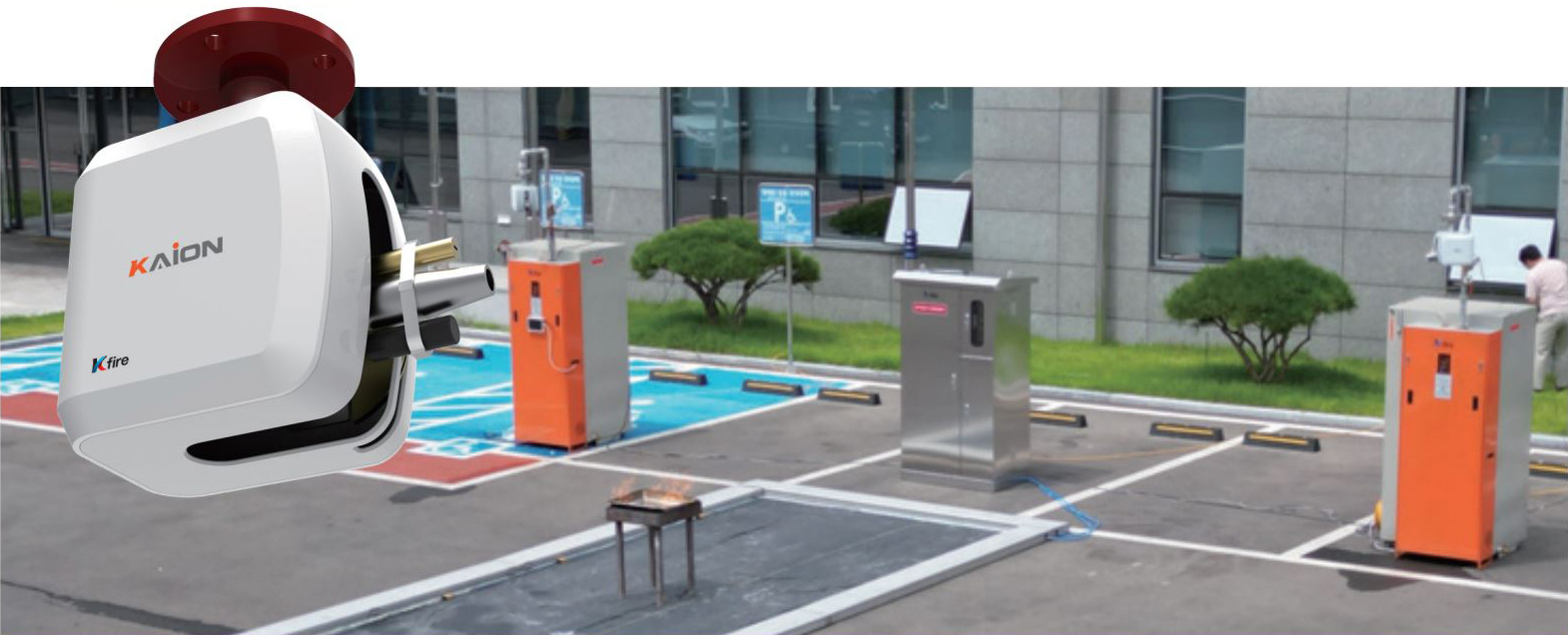

Installation in an electric vehicle charging facility

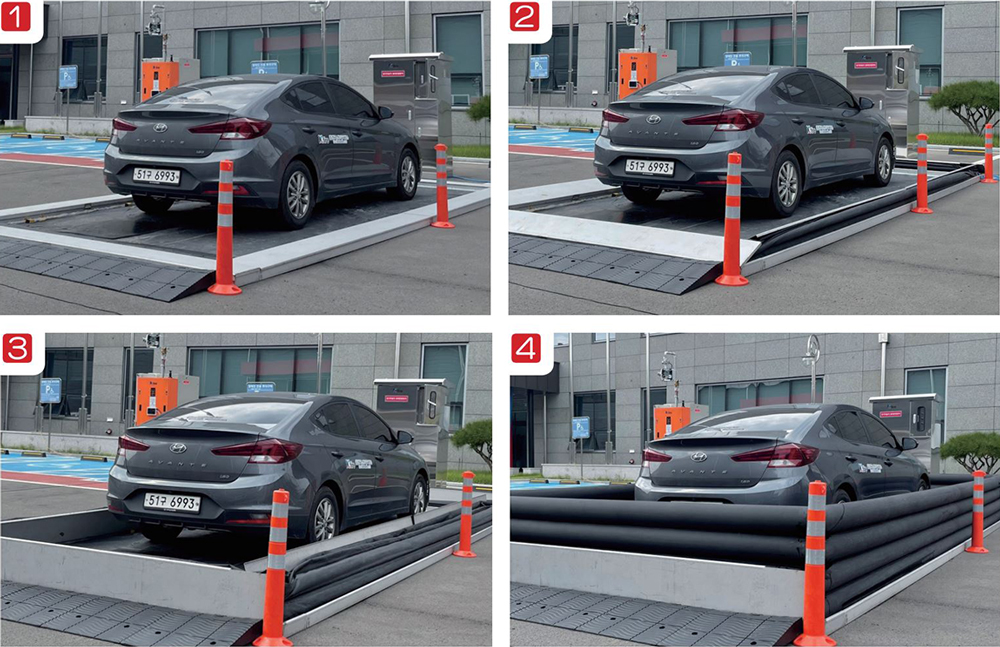

The fire extinguishing water tank storage box is installed on the floor along the parking line, and the fire extinguishing water tank is automatically formed when the operation button is pressed in case of a fire.
Aiming and releasing water from the Kaion(Fire fighting robot) to extinguish electric vehicle fires
Storage box & Control box
Applied material SUS304 and thickness of 3T
Hyphalon-based Fire Extinguishing Water Tank
Fire extinguishing water tank built in 4 layer of Ø15cm x 4 up to 60cm high
After suppression of early stage fire, activate manually to pump the water
Storage of high-pressure gas containers for filling fire extinguishing water tanks
Auto/manual switch attachment with solenoid valve
Installation of the fire extinguishing water tank exhaust pump
Fire Fighting Robot
Fire Fighting Robot
| Item | Fire Fighting Robot |
|---|---|
| Components | Controller, nozzle, camera, IR sensor |
| Fire detection | UV, IR, CAMERA |
| Water tank capacity | 1,600L (10 minutes), 3,200L (20 minutes) |
| Water discharging time | 10 ~ 20 minutes |
| Pump capacity | 3HP, Three phases 220/380 |
| Nozzles I.D. | 14.6mm |
| Pipe size (Suction and discharging) |
32A |
| Appearance figures (horizontal x vertical x height) |
Nozzle Height : 3m ~ 5m |
| 1) Water tank for 10 minutes : 920×920×2,000 | |
| 2) Water tank for 20 minutes : 1,300×1,300×2,000 (2-stage separation type) |
Real-time fire monitoring
UV, IR and Camera (Application of three types of fire detection systems) → Ensuring accuracy
Fire detection recognition rate of 90% ↑
TRACKING AND SUPPRESSION OF IGNITION POINTS
FEEDBACK ON FIRE EXTINGUISHING
D/B SET UP AND LEARNING AI
REMOTE AND MANUAL OPERATION

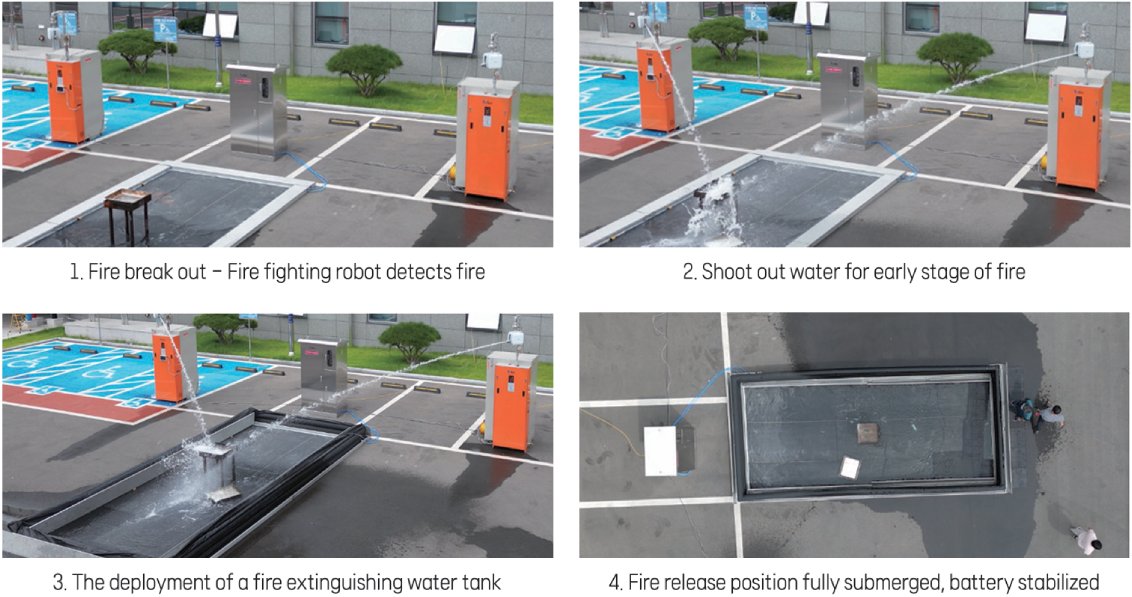

Fire Suppression System for EV Charging Facilities
Fire extinguishing water tank storage (Hypalon applied), Control box, Fire fighting robot

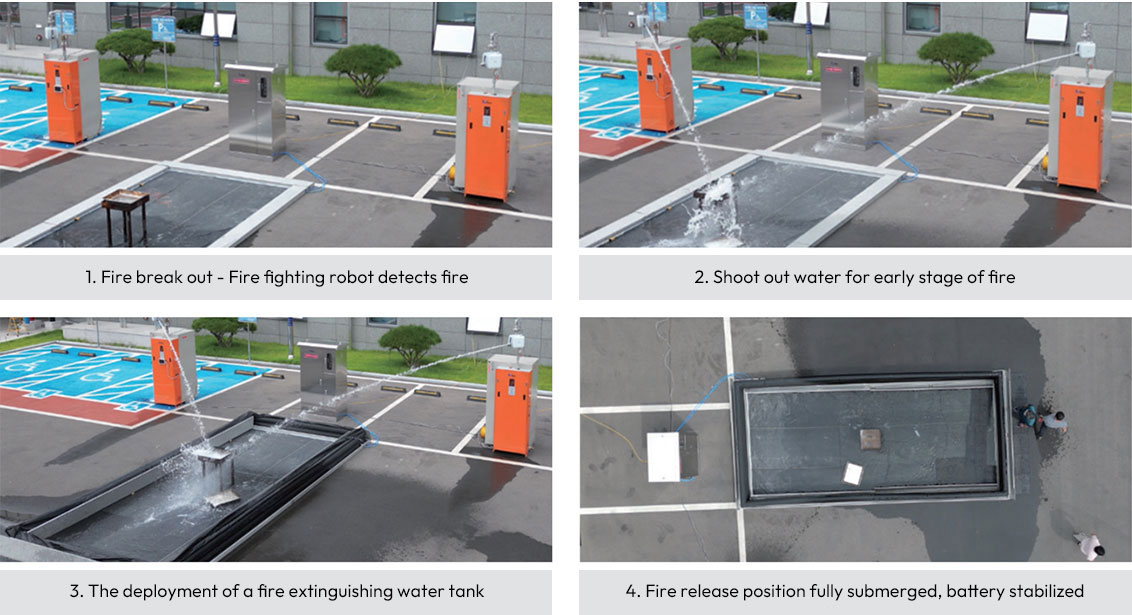

A fire breakout
Fire fighting robot detects fire (UV, IR, image recognition)
Shoot out water for early stage of fire
The fire extinguishing water tank control box receives a fire signal and opens the valve of the gas container connected to the fire extinguishing water tank to deploy
When the fire extinguishing water tank is completely charged, it detects the internal pressure and stops supplying the charging gas
Stabilize the battery by supplying water to the height of the battery of the accident vehicle
Fire Detection and Early Fire Response Firefighting Robot
Video-based fire detection (fire detection while moving)-RGB camera / thermal imaging camera
Fire spot targeting
Initial fire response with liquid-type extinguishing agent (sprays over 5m)
Mapping, autonomous movement, automatic charging
Wifi, mobile alerts and video monitoring
| Operating System | Android 5.1 or higher |
| Overall Size | Width, diameter: 51Ø, Height: 1300mm |
| Net Weight | 56Kg |
| Driving Speed | 0.1~1.0m/s |
| Maximum Payload | 60Kg |
| Charging Time | 4A (approx. 8 hours), 7A (approx. 4 hours) (supports auto-charging) |
| Robot Input Power | 28.4V ~ 7A |
| Battery Specification | Lithium-ion 25.6V / 25Ah |
| Battery Usage Time | Approx. 20 hours |
| Web Connection Method | WIFI |
| Mobility Elements | 25m laser navigation (includes autonomous obstacle avoidance) Climbing angle: 5° Turning radius: 0 Turning width: 254mm |
| Spraying Distance | Over 5m |
| Fire Extinguishing Agent Volume | 20 Liter |
| Fire Extinguishing Agent | Water or enhanced agent |
| Fire Detection | RGB camera, thermal imaging camera, AI-based video fire detection |
| Fire Detection Time | Within 2 seconds |

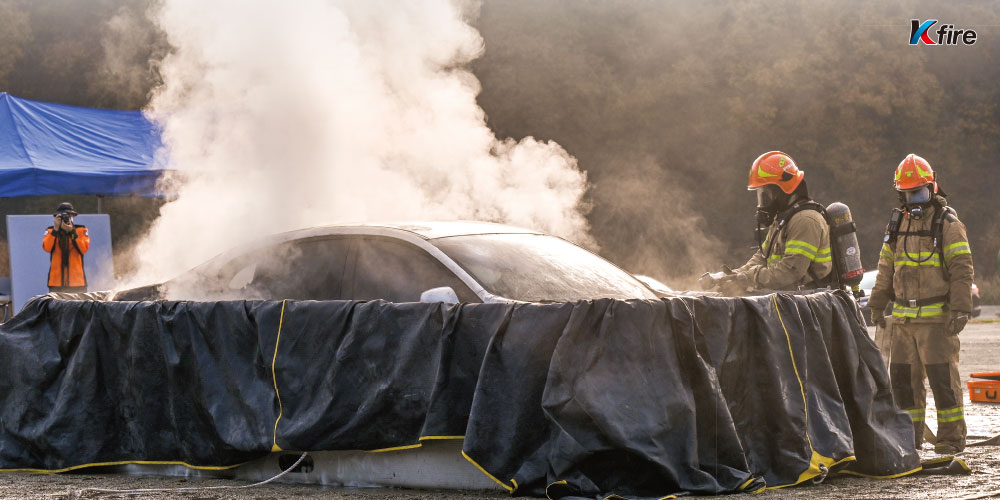

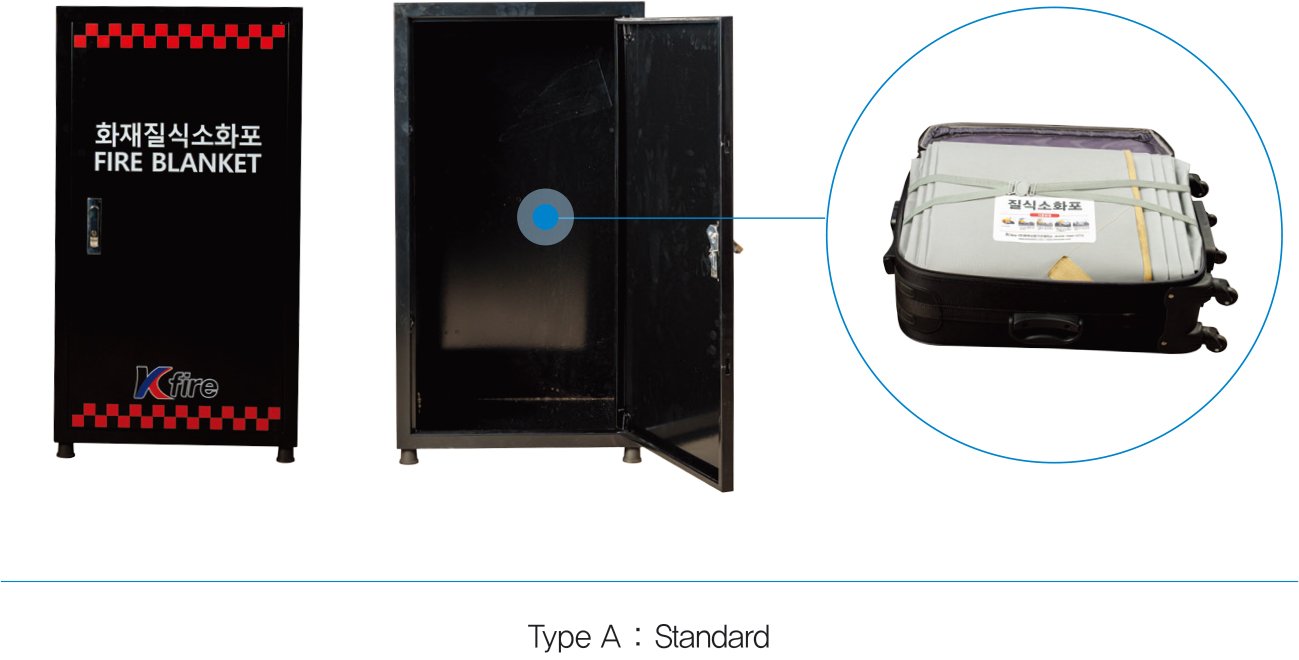

Smothering Fire Blanket (KEV-cover)
Why KEV-cover?
Electric vehicles and charging facilities are also increasing as sales of eco-friendly cars increase. Electric vehicles have a risk of fire due to external shocks or during charging, and it is difficult to completely extinguish a fire with a general fire extinguishing method.
Kfire has various fire suppression solutions based on suffocation air by fire cover (KEV-cover) that can prevent initial spread and reduce human and property damage in response to electric vehicle fires.
By analyzing the usage environment, we consult appropriate fire prevention and suppression solutions by deploying fire extinguishing water tanks (KEV-WT), fire extinguishing robots (KAION), and fire extinguishing cover (KEV-cover) under optimal conditions.

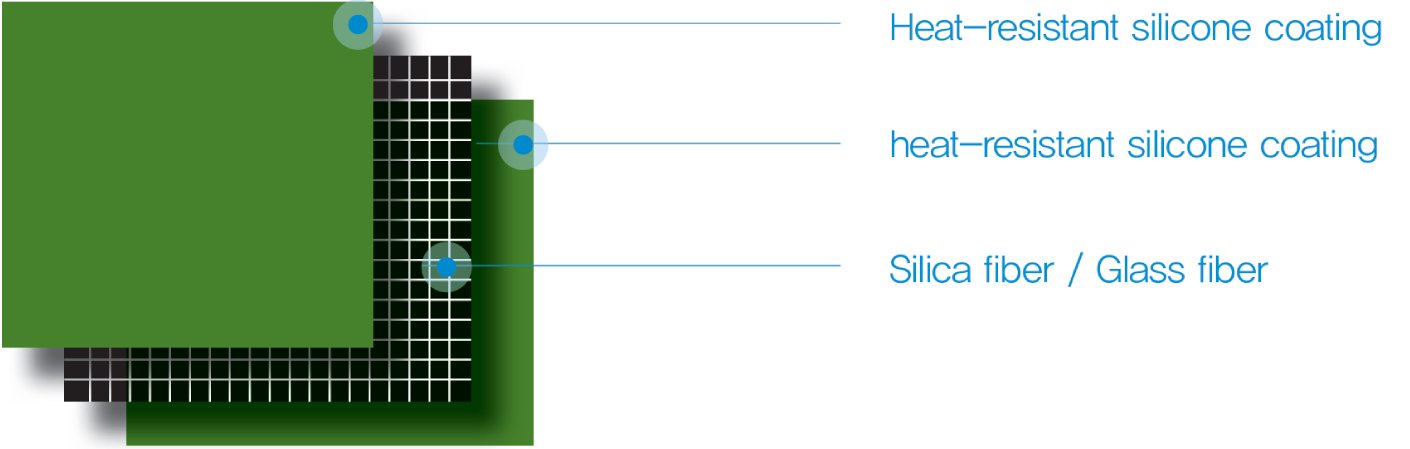

Smothering Fire Blanket Artillery Technology Strategy for Battery Fire Protection

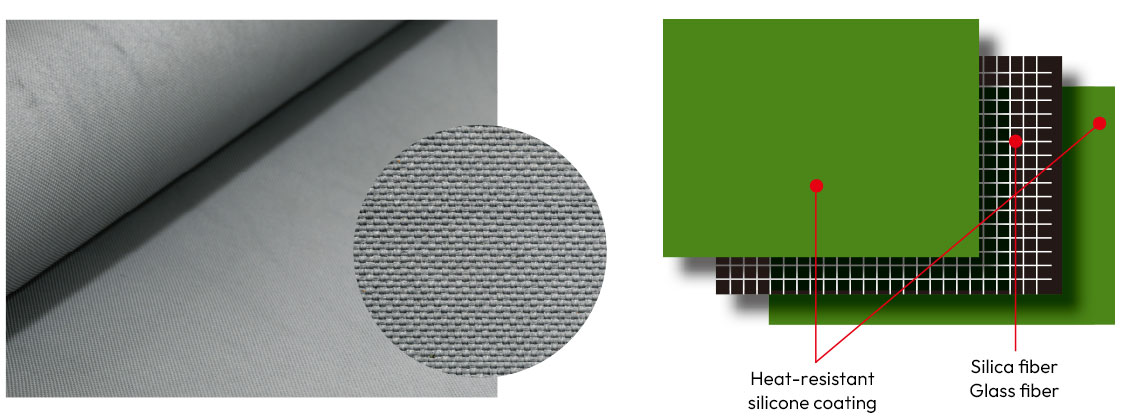

Glass fiber
Silica fiber
Smothering Fire Blanket
Penetration strength
Fire Resistance / Heat Resistance
Inner resistance
Minimize fold damage
Quick installation with accordion deployment method
WheelBoth floor-fixing and floor-movable types are possible
Ending Material SUS or Painting (desired color customizable)
Rubber PackingWaterproof rubber packing treatment of the molding part inside the fire extinguishing cover
