Kfire is with you to Keep your Safety and Happiness

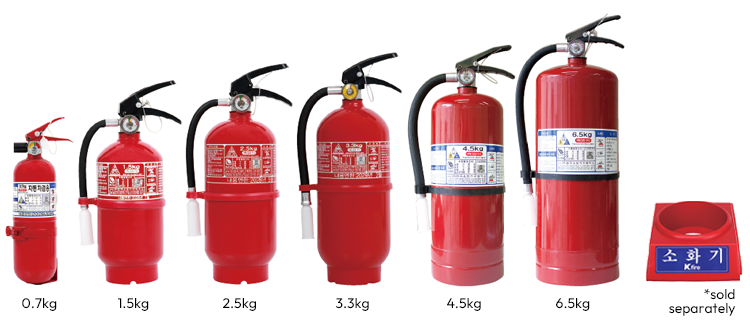

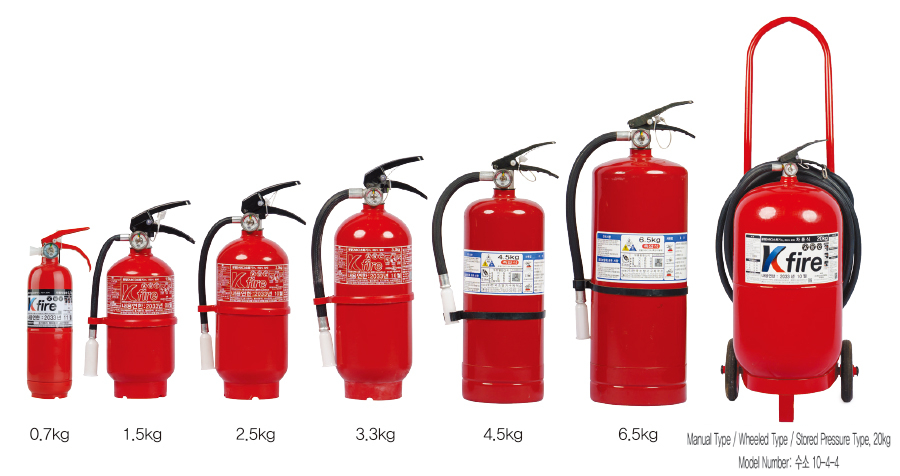

Dry Powder Fire Extinguisher

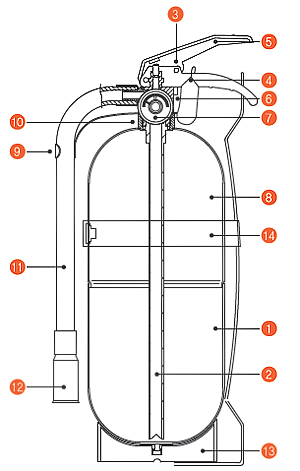

Structural of Compressive Dry Powder Fire Extinguisher



Specifications of Compressive Dry Powder Fire Extinguisher
Model Capability Unit Main Ingredient Charging gas Working pressure Total Weight Powder Weight Discharging Time Discharging Distance Height Outer Diameter
Compressive - 0.7kg A:1 B:1 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 1.5kg 0.7kg 10sec 2~3m 309㎜ 83㎜
Compressive - 1.5kg A:2 B:3 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 2.8kg 1.5kg 10sec 4~5m 350㎜ 125㎜
Compressive - 2.5kg A:2 B:4 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 4.0kg 2.5kg 12sec 4~5m 395㎜ 135㎜
Compressive - 3.3kg A:3 B:5 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 5.2kg 3.3kg 12sec 4~5m 450㎜ 145㎜
Compressive - 4.5kg A:4 B:6 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 7.1kg 4.5kg 14sec 5~6m 478㎜ 150㎜
Compressive - 6.5kg A:5 B:10 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 9.9kg 6.5kg 18sec 5~6m 555㎜ 175㎜
Compressive - 20kg A:10 B:20 C:Applicable Ammonium dihydrophosphate N2 0.9㎫ 36kg 20kg 33sec 6m 910㎜ 284㎜
  • 1 Cylinder
  • 2 Powder discharging pipe
  • 3 Safety pin
  • 4 Sealing string
  • 5 Handle
  • 6 Plug (Head)
  • 7 Pressure indicator
  • 8 Extinguishing powder and nitrogen gas
  • 9 Hose hanger
  • 10 Neck
  • 11 Hose
  • 12 Nozzle
  • 13 Cylinder support
  • 14 Bracket for Vehicle

Structure of 20.0kg Manual Fire Extinguisher



  • 1 Cylinder
  • 2 Powder discharging pipe
  • 3 Neck
  • 4 Head
  • 5 Safety pin
  • 6 Sealing string
  • 7 Handle
  • 8 Pressure indicator
  • 9 Hose
  • 10 15A Ball valve
  • 11 Nozzle
  • 12 Carrier(cart)
Features
  • Particular inspection is not required since it is possible to check the inner pressure just by watching the pressure indicator.
  • Since Nitrogen(Ni) is used, the ability to extinguish is excellent because the pressure changes upon temperature changes are not so big.
  • A compressed fire extinguisher is always a safe fire extinguisher because pressure is applied to the entire powder
  • The compressive type prevents moisture from entering from the outside, so there is no risk of solidification of the powder
  • Press and release the lever to control the release of the chemical in the fire extinguisher to extinguish the fire
  • It has high extinguishing ability since it has a strong discharging ability and this ability can reach such a long distance.
  • Since the hose hanger is fixed, it is ensured that the hose and the hose hanger do not get removed. (Patent)

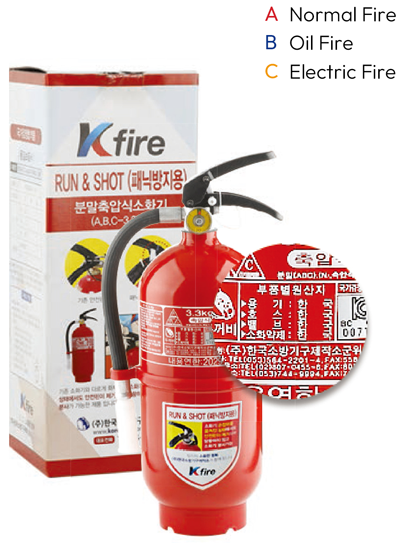

Fire Extinguisher for Preventing Panic 3.3 kg (for home and office)

Model Compressive - 3.3kg
Type Approval Hydrogen 15-15-5
Fire Rating A:3 B:5 C:Applied
Main Ingredient Ammonium dihydrophosphate
Charging Gas N2
Working pressure 0.9MPa
Total Weight 5.2kg
Powder Weight 3.3kg
Discharging Time 12Seconds
Discharging Distance 4~5m
Height 450m
Outer Diameter 145mm

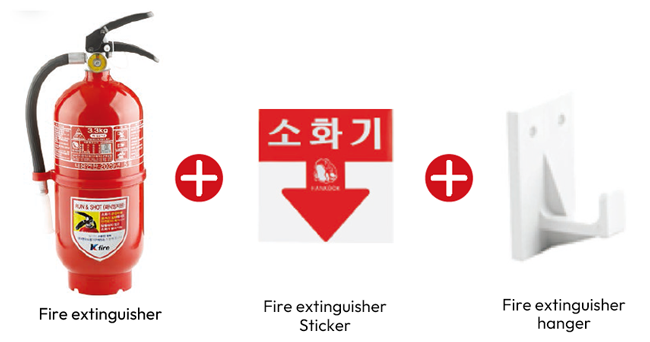

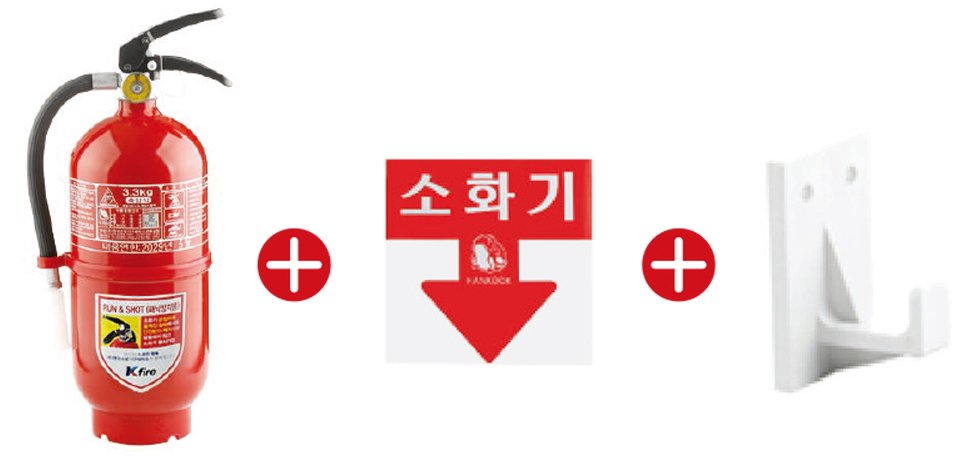

Configuration
Features

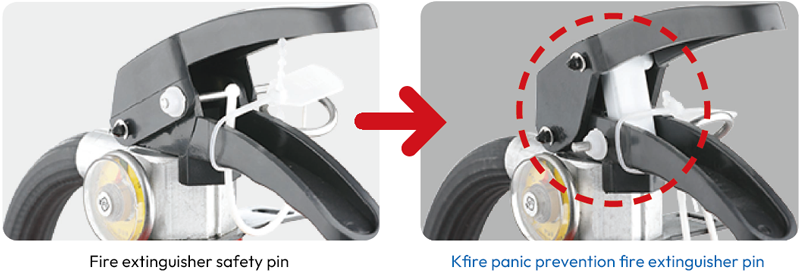

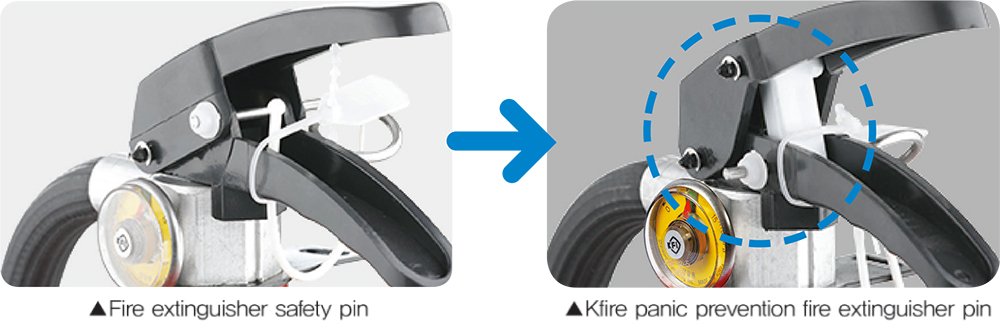

It is the only PANIC-FREE SAFETY PIN
in Korea to prevent panic.
RUN&Shot Panic Free

The safety pin is removed even when the handle is gripped,
allowing fire extinguisher injection without panic.

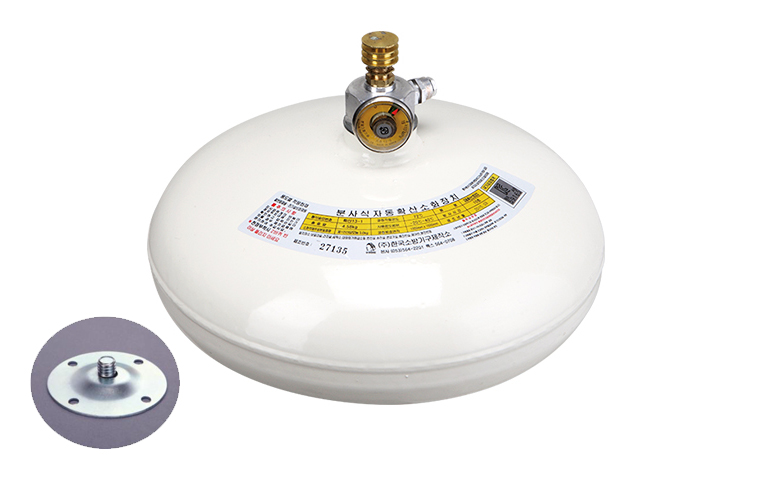

Components and Specifications of Automatic Diffusion Fire Extinguishing Equipment

HK-FD30

Type Approval 확산 13-1-1 72℃
Chemical W eight 3㎏ 10sec
Charging Pressure 7~9.8kg/㎠ 4.58㎏
Operating temperaturerange -20~40℃
Protection space 1㎡
Main ingredient Ammonium dihydrophosphate
Charring gas N2
Extinguishing performance General fire and electrical equipment
Usage
  • Laundry and drying room
  • Boiler rooms in apartments and homes
  • Rooms and engine rooms at the inn
  • Factory's workroom, substation room, engine room, product warehouse
  • Rooms and engine rooms of fishing boats and ships
  • Various oil handling stations and storage
Structural Diagram
  • 1 Valve
  • 2 Gauge
  • 3 Nozzle
  • 4 Heatproof Plate
  • 5 Gas inlet
  • 6 Gas Inlet plug
  • 7 Top Plate of Container
  • 8 Bottom plate of Container
  • 9 Neck
  • 10 Neck O-ring washer
  • 11 Container Fastening Nut
  • 12 Ceiling Installation Bracket
  • 13 O-ring
  • 13 -1 O-ring
  • 13 -2 O-ring
